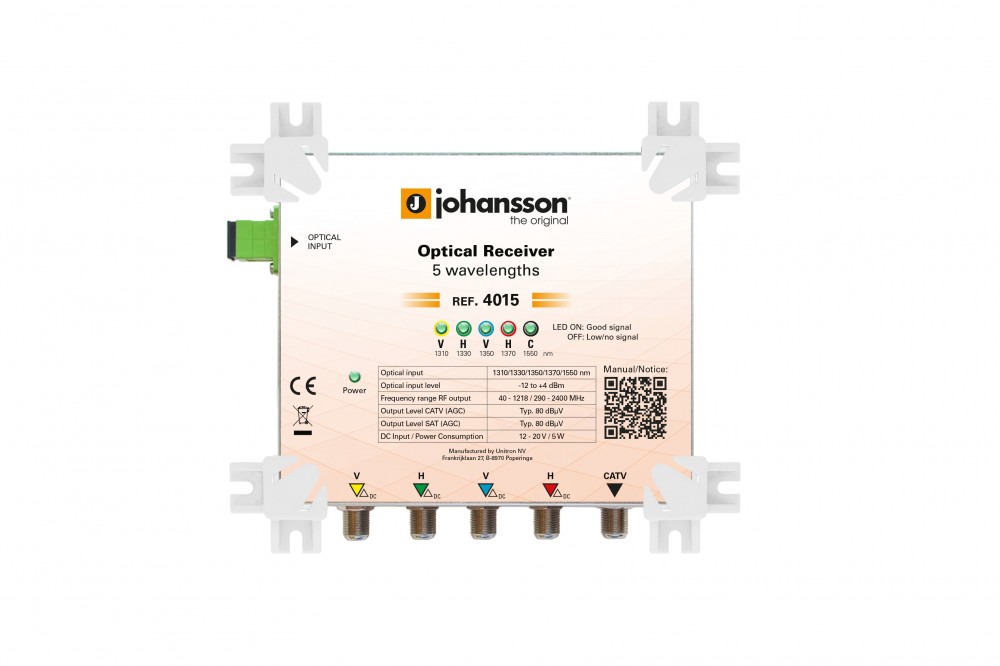

Ref. 4015 Optical Quintuple Receiver
4015 Optical Quintuple Receiver
Optical Quintuple Receiver (1310/1330/1350/1370/1550nm) with AGC
The Optical Quintuple Receiver is developed for the transmission of broadband signals in medium and large Fiber Optic systems. Ref.4015 converts 1310 + 1330 + 1350 + 1370 + 1550 nm to 2 x V/H and CATV signal.
- Up to 64 passive splits
- optical Input Level: -12 to +4 dBm
- frequency Range: 40 – 2400 MHz
- high reception quality even with high split ratios
- powering via V/H output (12-20V)
- AGC to boost signal level
- optical wavelengths: 1310-1330-1350-1370-1550nm
- compatible with Johansson wideband Multiswitches (e.g. 9775, 9754, 9758, 9734, etc.)
| REF. 4015 | ||
|---|---|---|
| Optical inputs | - | 1 |
| RF outputs | - | 5 (dual wideband + 1 CATV) |
| Optical wavelength | nm | 1310 - 1330 - 1350 - 1370 - 1550 |
| Frequency range | MHz | 40 - 1218 / 290 - 2400 |
| Optical input level | dBm | -12 to + 4 |
| AGC SAT output level | dBµV | 80 |
| AGC CATV output level | dBµV | 80 |
| Signal indicator | - | Green LED per wavelength |
| Return loss | dB | -8 (Typ -12) |
| Optical connectors | - | SC / APC |
| RF connectors | - | 75 Ohm F type (Female) |
| Power consumption | W | 5 |
| Power supply via V/H port | VDC | 12 - 20 |
| Power indicator | - | Green LED |
| Operating temperature range | °C | -10 to +55 |
| Dimensions | mm | 166 x 136 x 50 |
| Weight | kg | 0.375 |
| EAN | - | 5404041100326 |
